How CMC Is Used in Textile Sizing and Printing: A Practical Application Guide

Carboxymethyl cellulose (CMC) is used across several stages of textile production — most commonly in warp sizing, printing paste formulation, and dyeing auxiliaries. Each application has different grade requirements. This guide explains how CMC functions in each process and what parameters to specify when evaluating suppliers.

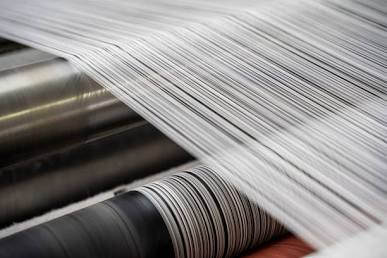

CMC in Textile Sizing

How CMC Works as a Sizing Agent

In warp sizing, yarn is coated with a sizing agent before weaving to reduce breakage caused by friction and mechanical stress on the loom. CMC forms a flexible, water-soluble film around the yarn surface that provides temporary protection during weaving without permanently altering the fiber.

Compared to starch-based sizing agents, CMC is generally more uniform in film formation and easier to remove during desizing — an advantage in downstream processing, particularly where clean fabric is required before dyeing or finishing.

Recommended Viscosity Grades for Sizing

Viscosity is the primary parameter for sizing applications. Medium-viscosity CMC grades are most commonly used, as they provide adequate film strength without making the sizing bath too thick to apply evenly at standard loom speeds.

The appropriate concentration in the sizing bath typically ranges from 0.5% to 2% depending on yarn count, fiber type, and loom speed. Your supplier should be able to recommend a starting concentration based on your specific yarn and equipment specifications.

Desizing and Washout Considerations

One practical advantage of CMC in sizing is its water solubility — it can be washed out with warm water without requiring enzymatic or chemical desizing agents, unlike some starch formulations. This simplifies the desizing step and reduces the risk of residual size affecting dye uptake in subsequent dyeing processes.

If your downstream process involves reactive or vat dyeing, confirm with your supplier that the CMC grade you are using is fully water-soluble at your desizing temperature.

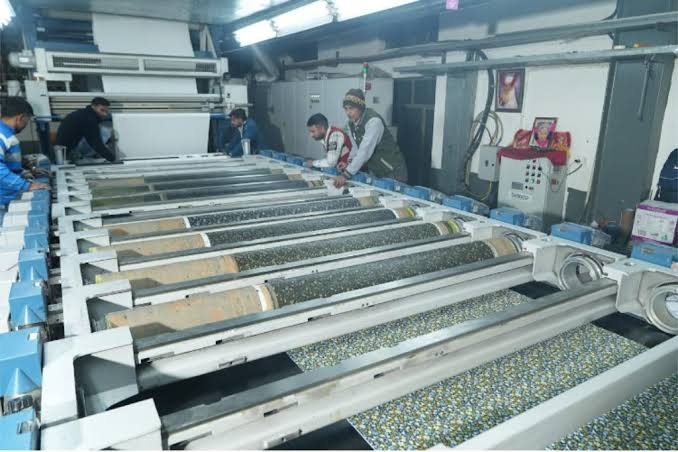

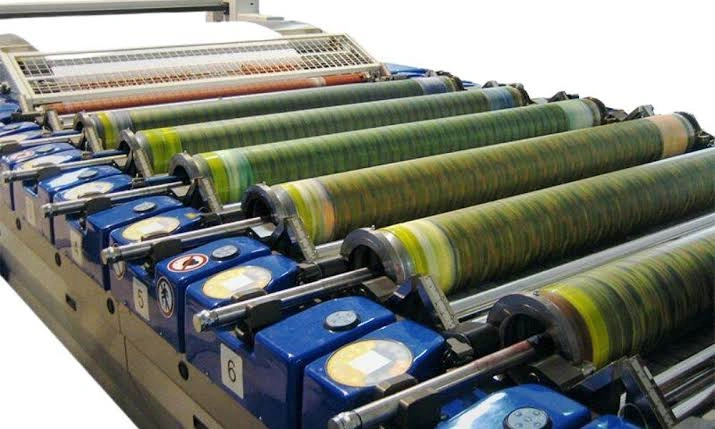

CMC in Textile Printing Paste

Function as a Thickener in Paste Formulations

In printing paste, CMC functions as a rheology modifier — it increases paste viscosity during preparation and controls how the paste flows through the screen and transfers onto the fabric. A well-formulated paste maintains its viscosity under the mechanical shear of screen printing but recovers quickly after the squeegee passes.

CMC-based paste is used primarily in pigment printing systems, and occasionally as a co-thickener in blended reactive dye formulations. For pure reactive dye printing on cotton, sodium alginate remains the more common choice.

Recommended DS Range for Printing Applications

The degree of substitution (DS) of CMC affects its solubility, viscosity behavior, and compatibility with dye auxiliaries. For printing paste applications, DS values in the range of 0.7 to 0.9 are commonly specified — this range provides good water solubility and stable viscosity under typical paste preparation and storage conditions.

Higher DS grades (above 0.9) may offer improved solubility at lower concentrations, which can be useful in formulations where paste transparency or low solids content is required. Discuss DS requirements with your supplier based on your paste recipe and printing method.

Compatibility with Pigment and Reactive Dye Systems

Before using CMC in a new paste formulation, run a compatibility check with your binder, fixative, and any other auxiliaries in the recipe. Some combinations can cause viscosity instability or phase separation during storage.

When trialing a new CMC grade, prepare a test batch at your standard concentration and observe viscosity stability over 24 to 48 hours. This is a practical check that reflects real storage conditions between paste preparation and production use.

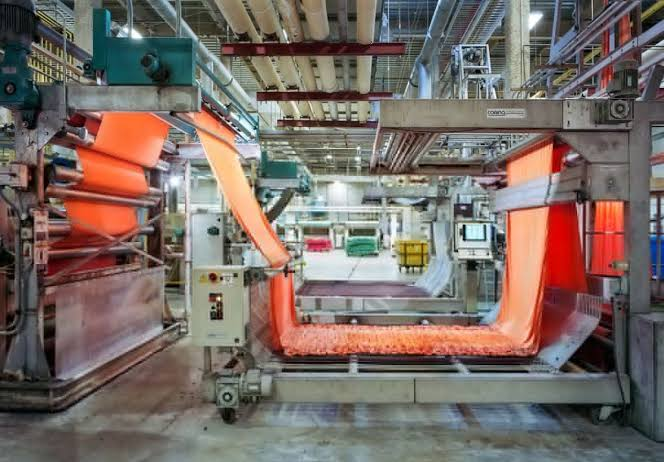

CMC in Textile Dyeing Auxiliaries

Role as a Dispersant and Stabilizer

In dyeing processes, CMC can function as a dispersant that helps keep dye particles evenly distributed in the dye bath. This is particularly relevant in systems where dye aggregation or uneven dispersion can cause shade variation across the fabric.

CMC is not a primary dyeing auxiliary, but it may appear as a component in dye bath formulations — particularly for direct dyes and vat dyes on cellulosic fibers. Its effectiveness in this role depends on the dye chemistry and the specific CMC grade used.

Application Method and Concentration Range

When CMC is used as a dye bath additive, it is typically added at low concentrations — commonly in the range of 0.2% to 0.8% of the bath volume. Higher concentrations are generally not necessary and can introduce unwanted viscosity into the dye liquor.

If you are considering CMC as a dyeing auxiliary, request application guidelines from your supplier and run small-scale trials before adjusting your dye bath chemistry. The interaction between CMC and your specific dye system should be confirmed experimentally.

Selecting the Right CMC Grade for Your Process

Low vs. Medium vs. High Viscosity

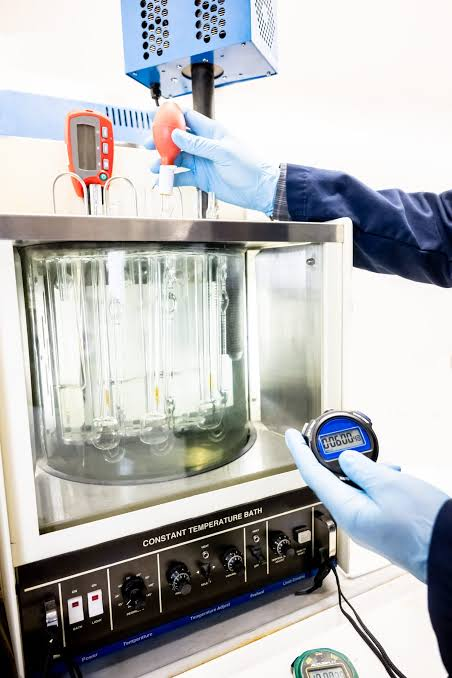

CMC viscosity is measured as a percentage solution at a defined temperature — commonly 1% or 2% at 25°C. The appropriate viscosity grade depends on your application:

• Low viscosity grades are suited for dyeing auxiliaries and digital pre-treatment applications where low solution viscosity is required
• Medium viscosity grades are the most common choice for warp sizing, providing a balance of film strength and ease of application
• High viscosity grades are used in printing paste where body and rheology control are the priority

Degree of Substitution (DS) and Its Effect on Performance

DS determines how many hydroxyl groups on the cellulose chain have been substituted with carboxymethyl groups. A higher DS generally means better water solubility and more consistent behavior across a range of temperatures and pH conditions.

For textile applications, DS typically falls between 0.6 and 0.9. Grades below 0.6 may show incomplete solubility, while grades above 0.9 are sometimes used in specialty applications where high solubility at low concentrations is needed.

What to Confirm with Your Supplier

Before ordering, request the following from your CMC supplier:

• TDS (Technical Datasheet) — DS range, viscosity specification, purity, and solubility
• SDS (Safety Data Sheet) — storage conditions, shelf life, and handling requirements
• CoA (Certificate of Analysis) — batch-specific test results
• Sample quantity — for internal trials before committing to bulk volume

If you are switching from another sizing agent or thickener to CMC, a side-by-side trial comparing your current product with the new grade is the most reliable way to validate performance before full production adoption.

How FSX Chemical Supports Your Sourcing Process

FSX Chemical supplies industrial-grade CMC for textile sizing, printing paste, and dyeing auxiliary applications. We offer multiple viscosity grades and DS specifications, with technical datasheets and sample quantities available on request.

Our technical team can assist with grade selection based on your application — share your fiber type, printing method, or paste formulation details and we will recommend a starting specification.

Next steps:

• Request a TDS — for the CMC grade that matches your application
• Request a Sample — to run internal trials before bulk ordering
• Ask for Grade Matching — share your process details for a targeted recommendation
• Contact Our Technical Team — for questions on switching from starch sizing or other thickeners: Service@fsxchemical.com
