Sodium Alginate Paste Preparation: Dissolution Methods and Concentration Guide

Correct paste preparation is one of the most commonly overlooked variables in reactive dye textile printing. A high-quality sodium alginate grade can underperform if the paste is not prepared correctly — lumps, viscosity inconsistency, and air entrapment at the preparation stage create problems that appear later as print defects or fastness failures.

This guide covers how to dissolve sodium alginate properly, what concentration to use for different printing applications, how to store prepared paste, and how to troubleshoot common preparation problems.

Why Paste Preparation Affects Print Quality

The Link Between Dissolution Quality and Paste Performance

Sodium alginate thickens by absorbing water and forming a hydrated gel network. For this network to form consistently, the powder needs to be dispersed evenly in water before hydration begins — if powder particles clump together before they are wetted, the outer layer of each clump hydrates and forms a barrier that prevents water from reaching the interior. The result is a paste with undissolved cores that affect viscosity, filtration, and screen behavior.

Well-prepared paste has a smooth, homogeneous texture with stable viscosity throughout the batch. This consistency directly affects how the paste transfers through the screen, how the dye distributes across the fabric surface, and how evenly the paste washes out after steaming.

Common Problems Caused by Incorrect Preparation

The most frequent paste preparation problems — and their downstream consequences — include:

• Undissolved lumps → screen blockage, uneven paste coverage, dye concentration variation across the print
• Air bubbles in paste → pinhole defects in the printed pattern, particularly visible on dense color areas
• Inconsistent viscosity between batches → color depth variation across production runs
• Paste degradation during storage → viscosity drop mid-run, pattern bleeding, reduced dye yield

Most of these problems are preventable with consistent preparation procedure and appropriate equipment.

Dissolution Methods: Cold Water vs. Hot Water

Cold Water Dissolution

Cold water dissolution is the standard method for most industrial-grade sodium alginate used in textile printing. The procedure involves dispersing the sodium alginate powder in cold water (typically below 25°C) under continuous agitation, then allowing the mixture to hydrate with continued stirring until fully dissolved.

The advantage of cold water dissolution is that it avoids the viscosity reduction that can occur at elevated temperatures, and it does not require heating equipment. It is suitable for most medium and high viscosity grades used in screen printing paste.

The key to successful cold water dissolution is controlling the powder addition rate. Adding powder too quickly causes clumping. The powder should be sifted or sprinkled gradually into the water while the agitator is running, rather than added all at once.

Hot Water Dissolution

Some sodium alginate grades — particularly those with lower degree of substitution or coarser particle size — dissolve more completely or more quickly in warm water (typically 40–60°C). Hot water dissolution can also be used when faster preparation time is needed.

The limitation of hot water dissolution is that heating reduces sodium alginate viscosity. If the paste is prepared hot and then cooled for use, viscosity will recover partially but may not return to the value that would have been achieved with cold water dissolution. For applications where precise viscosity control is important, cold water dissolution is preferred and the final paste viscosity should be checked at the temperature at which it will be used.

Hot water dissolution is generally not recommended for grades specified for high-viscosity printing paste applications, as the viscosity reduction during heating may make it difficult to achieve the target paste viscosity after cooling.

Which Method to Use for Your Grade

The appropriate dissolution method depends on the specific sodium alginate grade you are using. Your supplier’s technical datasheet should specify the recommended dissolution method and any relevant preparation conditions. If this information is not included in the TDS, request it before starting production trials.

As a general guideline: if your grade dissolves cleanly in cold water within your standard mixing time, cold water dissolution is preferred. If you observe persistent undissolved particles after adequate cold water mixing, try warm water or extend the mixing time before concluding that the grade has a solubility problem.

Recommended Concentration Ranges by Application

Sodium alginate concentration in printing paste is expressed as a percentage of the total paste weight (w/w). The appropriate concentration depends on the application, the viscosity grade of the sodium alginate, and the specific fabric and printing equipment in use. The ranges below are starting orientations — adjust based on your own viscosity targets and trial results.

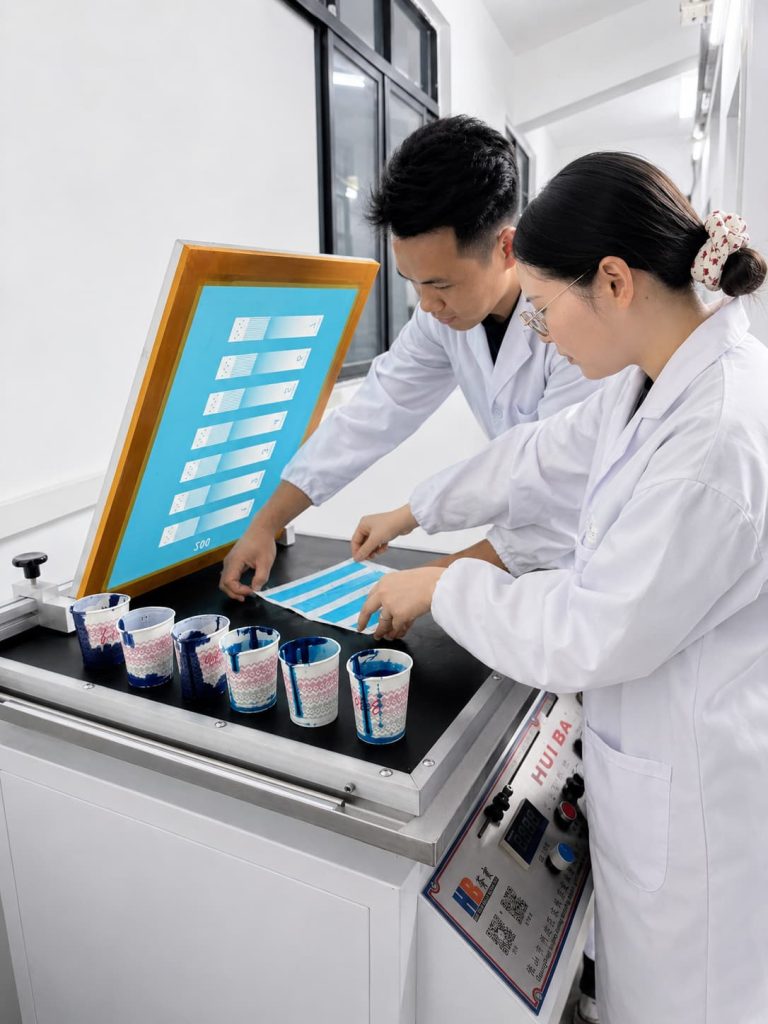

Flat Screen and Rotary Screen Printing

For reactive dye flat screen and rotary screen printing on cotton, sodium alginate is typically used at concentrations in the range of 3% to 6% (w/w), depending on the viscosity grade. Lower viscosity grades require higher concentration to achieve a given paste viscosity; higher viscosity grades reach the same target at lower concentration.

The paste viscosity target for screen printing typically falls in the range of 8,000 to 20,000 mPa·s (measured at low shear), though this varies with print mesh, fabric weight, and printing speed. Check viscosity at your standard measurement conditions — concentration and measurement method together define the target, not concentration alone.

Digital Pre-Treatment

For fabric pre-treatment before reactive inkjet printing, sodium alginate is used at much lower concentrations than in screen printing paste — typically in the range of 0.5% to 2% (w/w). At these concentrations, the paste needs to be fluid enough for application by padding mangle or spray, while still providing adequate surface conditioning effect on the fabric.

Low viscosity sodium alginate grades are most appropriate for digital pre-treatment. At concentrations above 2%, even low viscosity grades may produce paste that is too thick for even spray or padding application.

Discharge Printing

In discharge printing, sodium alginate paste carries the discharge agent rather than a reactive dye. Concentration ranges are similar to reactive screen printing — typically 3% to 5% — but the paste chemistry includes reducing agents or oxidizing agents that can interact with the sodium alginate over time.

Discharge printing pastes are generally less stable than reactive dye pastes and should be prepared closer to the time of use. Confirm with your supplier whether your sodium alginate grade is compatible with the specific discharge chemistry you are using.

Step-by-Step Paste Preparation Process

Equipment and Water Quality Considerations

Use a mixing vessel with adequate capacity for your batch size — paste volume increases during hydration, so allow headspace above the initial water volume. A variable-speed agitator with a paddle or propeller blade suited to viscous fluids is preferable to a high-shear disperser, which can introduce excessive air into the paste.

Water quality affects paste performance. Hard water (high calcium or magnesium content) can reduce sodium alginate viscosity by displacing sodium ions from the alginate chain. If your local water supply is hard, use softened water or deionized water for paste preparation, particularly for high-viscosity applications where precise viscosity control is important.

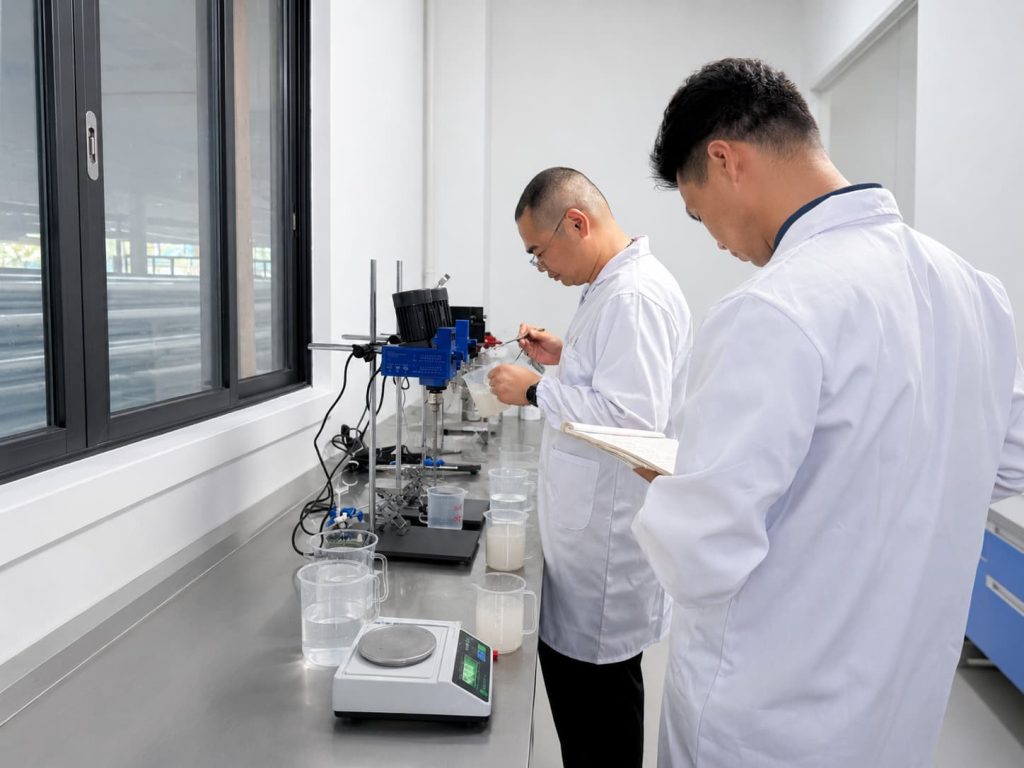

Weighing and Dispersing the Powder

Weigh the sodium alginate powder accurately — small errors in powder weight at low concentrations have a proportionally larger effect on viscosity than at higher concentrations. Use a calibrated scale, not volume measurement, for consistent results.

Start the agitator before adding powder. Add the powder gradually — in a steady stream or in small increments — while the agitator is running. This distributes the powder across the water surface and promotes individual particle wetting before hydration begins. Avoid adding large quantities of powder at once, which causes clumping.

Mixing Time and Hydration

After all powder has been added, continue agitation until the paste is fully homogeneous and no dry or lumpy particles are visible. Total mixing time depends on the grade and water temperature — cold water dissolution of medium-viscosity grades typically requires 30 to 60 minutes of continuous agitation for complete hydration.

Do not assess paste quality immediately after mixing ends. Allow the paste to rest for at least 15 to 30 minutes after the agitator is stopped, then check consistency and viscosity. Some grades continue to hydrate after agitation ends, and viscosity may be lower immediately after mixing than after the full hydration period.

Degassing Before Use

Agitation introduces air into the paste, which appears as fine bubbles distributed throughout the batch. Air bubbles in printing paste cause pinhole defects in the printed pattern — small unprinted spots where a bubble was trapped between the screen and the fabric at the moment of print.

Allow the prepared paste to stand undisturbed for at least 30 minutes to 1 hour before use to allow air bubbles to rise and dissipate. For high-viscosity paste, longer standing time may be needed. Do not stir the paste vigorously after degassing is complete.

Paste Storage and Stability

Storage Temperature and Container Requirements

Prepared sodium alginate paste should be stored in a covered container to prevent surface drying and contamination. Storage at cool temperatures (below 25°C) slows microbial growth, which is the primary cause of paste degradation during storage. Avoid direct sunlight and heat sources near storage containers.

Do not store prepared paste in metal containers that can corrode — use food-grade plastic or stainless steel containers. Corrosion products can affect paste ionic content and viscosity.

Shelf Life After Preparation

Prepared sodium alginate paste has a limited shelf life after preparation. At room temperature (20–25°C), paste is generally usable for 24 to 48 hours. In hot or humid environments, degradation can occur more quickly. Refrigerated storage (4–10°C) can extend usable life, but the paste should be allowed to return to room temperature and checked for viscosity before use.

For high-volume operations, prepare paste in batch sizes that can be used within one production shift where possible, rather than preparing large batches that will be stored for multiple days.

Signs That Paste Has Degraded

Paste that has degraded may show one or more of the following signs: significant viscosity reduction compared to the freshly prepared batch, off-odor (indicating microbial activity), color change, or surface skin formation. Degraded paste should not be used in production — the resulting print will show reduced color yield, pattern bleeding, or fastness problems that will be difficult to trace to the paste if the degradation is not identified first.

If your paste regularly degrades faster than expected, check storage temperature, container cleanliness, and water quality. Adding a small quantity of a compatible preservative may be appropriate in hot-climate operations — consult your supplier for recommendations specific to your paste formulation.

Common Preparation Problems and How to Address Them

Lumps and Undissolved Particles

Lumps in prepared paste are caused by powder clumping during addition or insufficient mixing time. If lumps are present after the standard mixing period, extend mixing time and check whether the powder is being added too quickly.

Passing the paste through a fine mesh strainer before use can remove visible lumps, but this does not resolve the underlying preparation problem — the strained-out material represents lost thickener that will affect your actual paste concentration and viscosity. Address the root cause in the preparation procedure rather than relying on straining as a correction.

Viscosity Lower Than Expected

If measured paste viscosity is consistently lower than the value expected from the supplier’s TDS, check the following in order: powder weight accuracy, water hardness, water temperature during dissolution, and mixing time. Each of these factors can reduce effective viscosity below the theoretical value.

Also confirm that your viscosity measurement method matches the method used by the supplier to generate the TDS data — concentration, temperature, spindle selection, and shear rate all affect the measured value. A result that seems low may simply reflect a different measurement condition rather than a genuine performance shortfall.

Paste Thickening or Gelling During Storage

In some cases, prepared paste may thicken or partially gel during storage rather than maintaining stable viscosity. This can occur if the paste is exposed to temperature fluctuations, if calcium or other divalent ions are present in the water, or if the paste has been contaminated.

If paste thickening during storage is a recurring problem, check water quality for divalent ion content, ensure storage containers are clean and covered, and consider whether the sodium alginate grade you are using is suited to your storage conditions. Discuss the issue with your supplier — some grades are more susceptible to viscosity instability under storage than others.

How FSX Chemical Supports Your Paste Preparation Process

FSX Chemical supplies sodium alginate grades for reactive dye textile printing, including grades suited to cold water dissolution and digital pre-treatment applications. Technical datasheets include dissolution method recommendations and concentration guidance for each grade.

Sample quantities are available for preparation trials before bulk ordering. If you are experiencing paste preparation problems with your current sodium alginate grade, our technical team can assist with troubleshooting and grade recommendations based on your specific conditions.

Next steps:

• Request a TDS — includes dissolution method, recommended concentration range, and viscosity specification
• Request a Sample — run preparation trials and viscosity checks before bulk ordering
• Ask for Grade Matching — share your application, water conditions, and mixing equipment for a specific recommendation
• Contact Our Technical Team — for paste preparation troubleshooting or formulation support: Service@fsxchemical.com
