Sodium Alginate in Textile Sizing and Desizing: A Process Guide

Sodium alginate is used in textile production not only as a printing paste thickener but also as a sizing agent in warp preparation. Its water solubility and film-forming properties make it particularly valuable in applications where clean, complete removal before dyeing is important. This guide covers how sodium alginate is used in sizing, what conditions are needed for effective desizing, and how grade selection affects performance across both stages.

The Role of Sizing in Textile Production

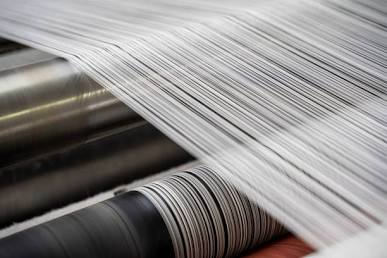

Why Warp Sizing Is Necessary

In weaving, warp yarns are subjected to repeated mechanical stress — tension, bending, and abrasion against the loom components — as the fabric is formed. Unsized yarn, particularly fine-count or staple-fiber yarn, breaks under this stress at a rate that reduces loom efficiency and increases waste.

Sizing applies a thin protective coating to the warp yarn before it enters the loom. This coating temporarily increases yarn tensile strength, reduces hairiness (loose fiber ends that cause abrasion), and provides a smooth surface that improves yarn running behavior at high loom speeds. The sizing agent is removed after weaving in the desizing stage, before the fabric proceeds to dyeing or finishing.

How Sizing Agent Choice Affects Downstream Processing

The sizing agent applied to warp yarn must be fully removed before dyeing. Residual size on the fabric surface interferes with dye uptake, causes uneven color distribution, and can create resist areas that appear as dye defects in the finished fabric.

The ease of desizing — how completely and efficiently the sizing agent can be removed — is therefore a critical selection criterion, particularly for fabrics that will receive reactive or vat dyeing after weaving. Sizing agents that require enzymatic or chemical desizing add process steps and cost. Sizing agents that wash out readily with hot water simplify the desizing stage and reduce the risk of incomplete removal.

Sodium Alginate as a Sizing Agent

Film-Forming Properties on Yarn

Sodium alginate forms a flexible, coherent film on yarn surfaces when applied from an aqueous solution. This film provides the protective function needed during weaving — improving tensile strength and reducing surface hairiness — while remaining water-soluble and therefore removable in the desizing stage.

The film formed by sodium alginate is generally more flexible and uniform than starch-based size films, which can be brittle and prone to cracking at the yarn surface during weaving. This flexibility is particularly relevant for fine-count yarns and high-speed looms where yarn bending and abrasion are more severe.

Comparison with Starch and PVA Sizing Agents

Starch is the most widely used sizing agent for cotton yarns due to its low cost and availability. However, starch sizing requires enzymatic desizing — the starch film does not dissolve readily in hot water and must be broken down by amylase enzymes before it can be washed off. Enzymatic desizing adds processing time and cost and requires careful enzyme dosing to avoid fiber damage.

PVA (polyvinyl alcohol) is used in sizing for synthetic and blended yarns. It offers good film strength but is more difficult to remove in hot water than sodium alginate and may require higher wash temperatures or chemical assistance for complete desizing.

Sodium alginate dissolves readily in hot water without enzymatic or chemical treatment, which simplifies the desizing process and reduces the number of process steps between weaving and dyeing. For fabrics where the desizing stage is a production bottleneck, or where enzyme cost or control is a concern, sodium alginate offers a practical alternative.

Suitable Fiber Types and Applications

Sodium alginate sizing is most commonly used on cotton and other cellulosic yarns — linen, viscose, and cellulosic blends. It is also used in blended sizing baths alongside starch or PVA for mixed-fiber applications.

It is less commonly used as the primary sizing agent for synthetic yarns (polyester, nylon), where PVA or acrylic sizes are typically preferred for their compatibility with synthetic fiber surfaces.

Application Parameters for Sodium Alginate Sizing

Concentration and Viscosity in the Sizing Bath

Sodium alginate in a sizing bath is typically used at lower concentrations than in printing paste. Concentrations in the range of 0.5% to 2% (w/w) are common, depending on yarn count, fiber type, and the coverage requirement. Fine-count yarns generally require lower size add-on and lower concentration; coarser yarns may need higher concentration for adequate coverage.

Viscosity of the sizing bath affects how evenly the size is applied and how much size is picked up by the yarn during immersion. Low to medium viscosity sodium alginate grades are typically used in sizing baths — high viscosity grades at these concentrations would produce a bath that is too thick for even application and would result in excessive size add-on.

Bath Temperature and Pickup Rate

Sodium alginate sizing baths are typically operated at elevated temperature — commonly 60 to 80°C — to reduce bath viscosity and improve yarn penetration during sizing. At higher temperatures, the size solution is less viscous, which allows better penetration into the yarn structure rather than coating only the surface.

Size pickup rate — the amount of size applied relative to dry yarn weight — is controlled by the concentration of the sizing bath and the squeeze roller pressure after immersion. Target pickup rates for sodium alginate sizing vary with application; confirm the target for your specific yarn and loom type through trial.

Drying Conditions After Sizing

After the size bath, sized yarn passes through a drying section to remove water and form the size film. For sodium alginate, drying temperatures and times need to be sufficient to form a coherent film but not so high as to degrade the alginate or create a brittle film.

Excessive drying temperature can reduce sodium alginate molecular weight and weaken the film, reducing the protective function of the size during weaving. Under-drying leaves the film soft and tacky, causing yarn-to-yarn adhesion on the beam. Confirm recommended drying conditions for your grade with your supplier.

Desizing: Removing Sodium Alginate After Weaving

Why Desizing Quality Matters for Downstream Dyeing

Incomplete desizing is one of the most common causes of dye defects in woven fabric. Residual size on the fabric surface acts as a physical barrier and chemical interference in the dyeing process — it prevents dye molecules from reaching the fiber surface, creates local resist areas, and can affect the pH uniformity of the dye bath.

For reactive dye dyeing or printing after weaving, complete desizing is particularly important because reactive dyes require intimate contact with fiber hydroxyl groups for covalent fixation. Any residual size film between the dye and the fiber reduces fixation rate and creates shade variation.

Hot Water Desizing Method

Sodium alginate desize readily in hot water, which is one of its key advantages as a sizing agent for downstream dyeing processes. The desizing procedure typically involves:

• Wetting the woven fabric in warm water to rehydrate the size film
• Washing in hot water (typically 80–95°C) with agitation to dissolve and remove the size
• Rinsing in clean water to remove dissolved size and any residual sodium alginate from the fabric

No enzymes or chemical desizing agents are required for sodium alginate removal under these conditions. The sizing agent goes into solution and is removed with the wash liquor.

Confirming Complete Removal Before Dyeing

Complete desizing should be confirmed before the fabric proceeds to dyeing. A standard test for residual size involves applying an iodine solution to the desized fabric — starch residue gives a blue-black color reaction, while sodium alginate residue can be detected by alternative methods including conductivity measurement or total organic carbon (TOC) testing of the wash effluent.

If residual size is detected, additional hot water washing is required before dyeing. Do not proceed to dyeing with confirmed size residue present — the dye defects produced will be difficult to correct after fixation.

How Sodium Alginate Grade Affects Sizing and Desizing Performance

Viscosity Grade Selection

For sizing bath applications, low to medium viscosity sodium alginate grades are most appropriate. These grades produce a bath of workable viscosity at sizing concentrations and allow adequate yarn penetration without excessive size add-on.

High viscosity grades at the same concentration would produce a thicker bath that applies more size per unit of yarn surface area — potentially useful for very coarse yarns requiring higher coverage, but unsuitable for fine-count yarns where size add-on needs to be controlled carefully.

Degree of Substitution and Film Quality

DS affects the flexibility and coherence of the size film. Higher DS grades generally produce more uniform and flexible films due to better solubility and more even distribution on the yarn surface. For fine-count yarn sizing where film uniformity is critical, a higher DS grade may be worth specifying.

Confirm DS specification with your supplier when ordering sodium alginate for sizing applications — the same viscosity grade may be available with different DS ranges, and the film properties can differ meaningfully between them.

Purity and Its Effect on Desizing Efficiency

Impurities in sodium alginate — primarily residual sodium chloride from the manufacturing process — do not typically prevent desizing but can affect bath performance and wash liquor management. Higher salt content in the sizing bath can affect the ionic environment and may interact with sizing bath additives.

For desizing, purity affects how cleanly the size dissolves and whether any residue from impurities remains on the fabric after washing. For fastness-sensitive applications where fabric cleanliness before dyeing is critical, specifying a lower-impurity grade is worth considering.

Common Sizing and Desizing Problems

Uneven Size Film on Yarn

Uneven size film — where some yarn sections have higher size add-on than others — typically results from uneven squeeze roller pressure, bath concentration variation, or incomplete dissolution of the sodium alginate in the sizing bath. Undissolved particles in the sizing bath create local high-concentration spots that deposit unevenly on yarn surfaces.

Ensure complete sodium alginate dissolution before filling the sizing bath. Check for undissolved particles by visual inspection of the bath solution and by filtering a sample through a fine mesh. Adjust bath concentration if size add-on measurement shows variation across the warp width.

Incomplete Desizing Before Dyeing

If iodine or other residue tests show size remaining after the standard desizing wash, extend hot water washing time or increase wash temperature before attempting dyeing. Check whether the sodium alginate concentration in the sizing bath was higher than intended — heavier size application requires more thorough washing for complete removal.

Also verify that the desizing wash water temperature was maintained throughout the washing stage. Temperature drops during washing reduce sodium alginate solubility and can leave partially dissolved size in the fabric.

Size Bath Viscosity Instability

If sizing bath viscosity changes significantly during a production run — becoming thicker or thinner over time — check bath temperature stability, water evaporation rate, and whether the sodium alginate grade is maintaining stability at the operating temperature.

Sodium alginate bath viscosity decreases at higher temperatures and can be affected by contamination from other chemicals in the sizing section. Prepare fresh sizing bath at the start of each production shift and check viscosity before use.

How FSX Chemical Supports Your Sizing Process

FSX Chemical supplies sodium alginate grades suitable for textile sizing and desizing applications, including low and medium viscosity grades across a range of DS specifications. Technical datasheets with concentration guidance, dissolution method recommendations, and viscosity specifications are available on request.

Sample quantities are available for sizing bath trials before bulk ordering. If you are evaluating sodium alginate as an alternative to starch or PVA sizing, or troubleshooting a sizing or desizing problem, our technical team can assist with grade selection and application guidance.
